suspension clamps
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

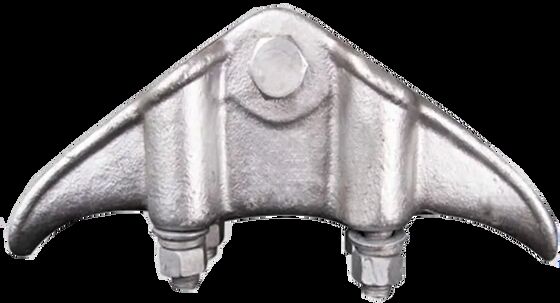

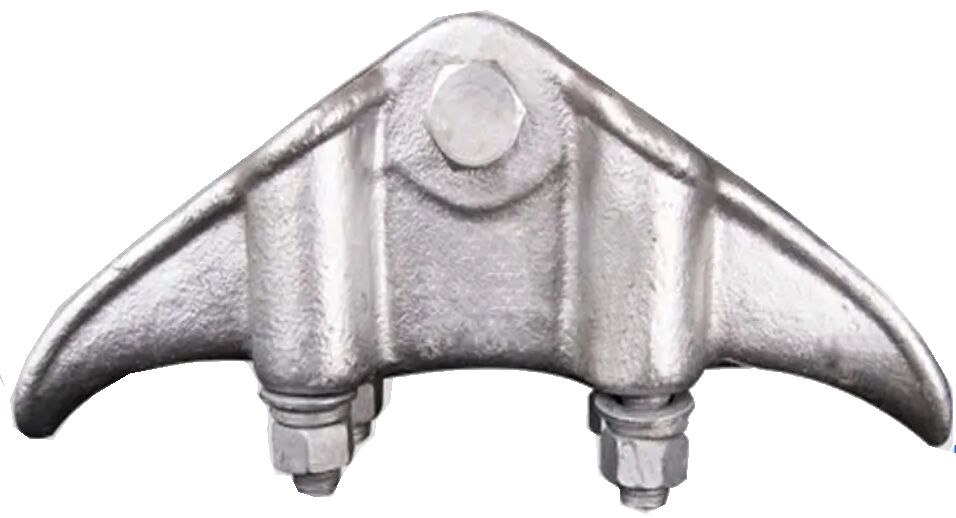

Suspension clamps (Envelope and Anti-corona type)
| Catalogue No. |
Applicable conductor Overall Dia. (mm) |
Main dimensions(mm) |
Rated failure Load (KN) |
Weight (kg) |
||||
| H | C | M | R | L | ||||
| XGF-6 | 36~43 | 92 | 44 | 18 | 22.0 | 300 | 80 | 3.8 |
| XGF-53 | 43~51 | 100 | 56 | 16 | 26.5 | 350 | 70 | 5.6 |
1. The clamp body and keepers are aluminium alloy, cotter-pin is stainless steel ,
the other parts are hot-dip galvanized steel.
2. As the suspension clamps are used to AAC and ACS and ACSR , the conductor
may be wrapped by aluminium tapes or preformed armor rods to protect conductor,
these taps or rods are calculated in the diameter of conductor.
