suspension clamps
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

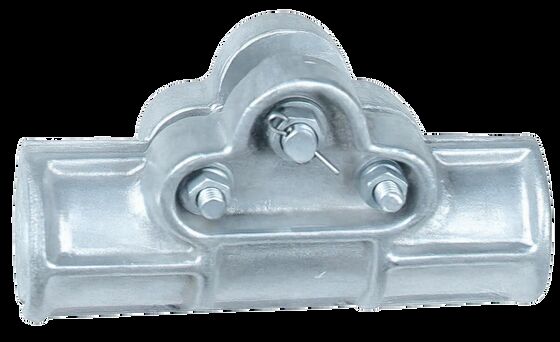

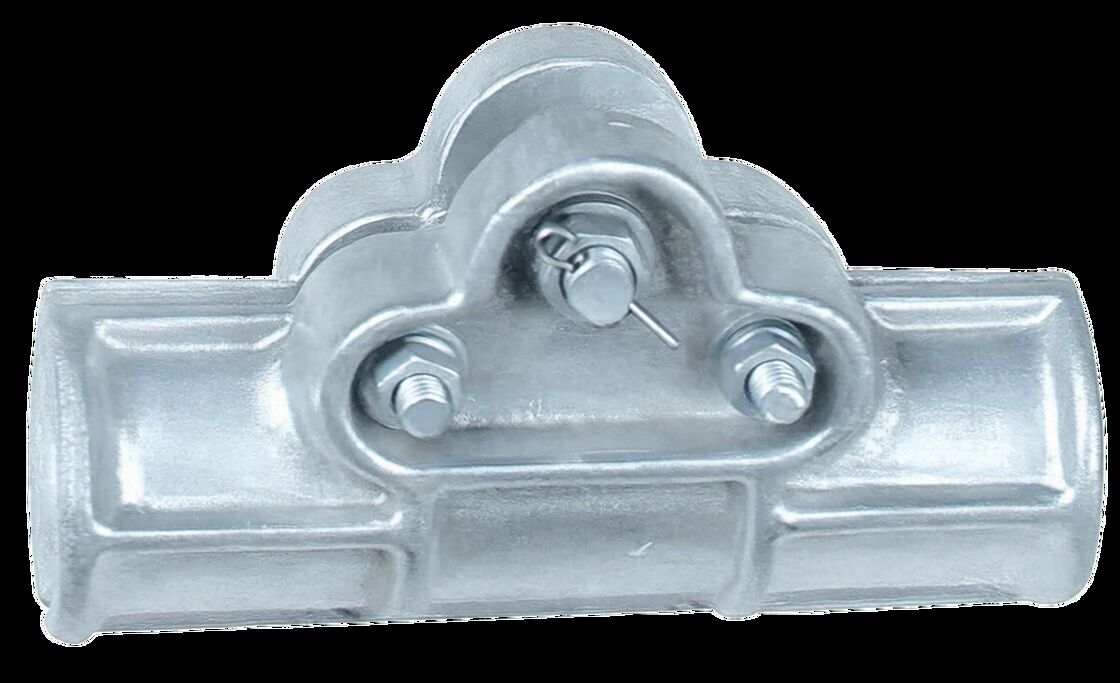

Aluminum alloy suspension clamp (overhead type & dropping type optionally)
| Catalog No · |
Applicable conductor Overall Dia. (mm) |
Main dimensions(mm) |
Rated failure Load (KN) |
Weight (kg) |
|||
| C | M | H | L | ||||
| XGF-300 | 23.7 | 24 | 16 | 60 | 250 | 40 | 3.0 |
| XGF-400 | 26.8 | 24 | 16 | 60 | 250 | 40 | 3.5 |
| XGF-1400 | 51 | 24 | 16 | 63 | 260 | 60 | 4.8 |
| XGF-1440 | 51.36 | 24 | 16 | 63 | 300 | 60 | 5.5 |
1.The clamp body and keepers are aluminium alloy, cotter-pin is stainless steel ,
the other parts are hot-dip galvanized steel.
2. As the suspension clamps are used to AAC and ACS and ACSR ,
the conductor may be wrapped by aluminium tapes or preformed armor rods
to protect conductor ,these taps or rods are calculated in the diameter of conductor.
