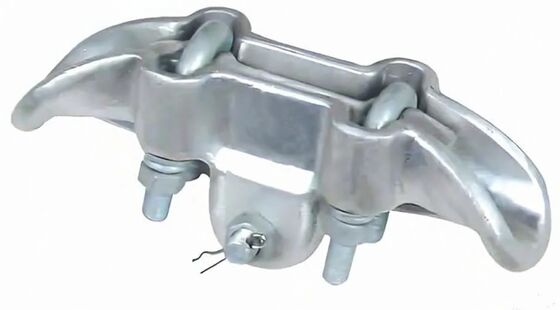

suspension clamps
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Suspension clamp(overhead type)
| Catalogue No. |
Applicable conductor Overall Dia. (mm) |
Main dimensions(mm) |
Rated failure Load (KN) |
Weight (kg) |
||||
| H | C | M | R | L | ||||
| XGF-5K | 23.7~27.6 | 55 | 24 | 16 | 16 | 300 | 60 | 3 |
1.The clamp body and keepers are aluminium alloy, cotter-pin is stainless steel ,
the other parts are hot-dip galvanized steel .
2. As the suspension clamps are used to AAC and ACS and ACSR ,
the conductor may be wrapped by aluminium tapes or preformed armor rods to
protect conductor ,these taps or rods are calculated in the diameter of conductor.
