Tension clamps
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
一,Tension assembly sets for ADSS
Product introduction
This type of tension clamp is a preformed dead end, it can be applied on tension towers /poles
The type can be selected according the cable: diameter,RTS and span length

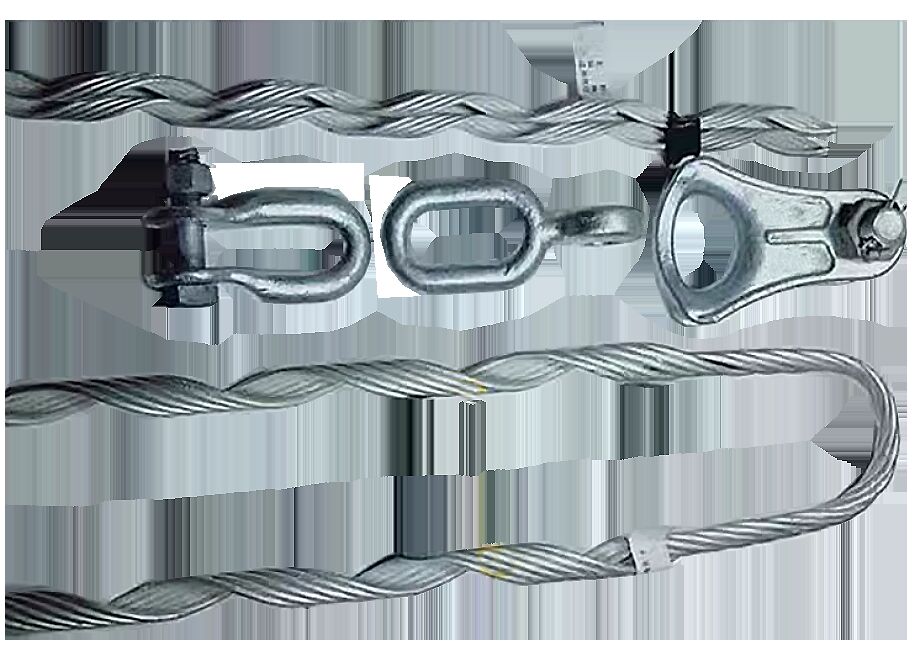

Whole set of tension assembly will be included each of : inner protection preformed armor rods(alternatively),outer layer-dead end and thimble. Connecting fittings will be included according to the requirement. (such as U-shackle,link plate,link ring and so on, as show on referring picture)
Products specification
Inner protection preformed armor rods are made of Aluminum clad steel,every subsets are glued and sanded inside surface, ends of the rods are bend outward(about 20mm) , to protect surface of ADSS cable;
Outer layer- dead ends are made of aluminum clad steel , totally combined together ,glued and sanded at inside of the surface.
Thimble ia made of malleable cast iron,hot dip galvanized .It has 5 types with different rated load:5KN;50KN;70KN;100KN；120KN
Connecting parts(such as U-shackle,link plate,link ring and so on can be available in our catalogue parts “connecting fittings”

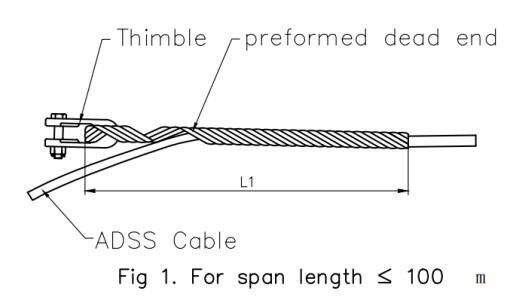

1. Application for short-span ADSS(refer Fig.1)(without protection rods)
(The max usage tension load:7KN. The broken strength: 10KN. The recommended span:0-100m)
| Type | Cable outer diameter (mm) | Parameter of dead end | Code Mark | ||
| Min. (mm) | Max.(mm) | No. Of rods | Whole length(mm) | ||
| ANY 0900 100 | 8.1 | 9.0 | 5 | 800 | Red |
| ANY 1000 100 | 9.1 | 10.0 | 6 | 800 | Red |
| ANY 1100 100 | 10.1 | 11.0 | 6 | 900 | Yellow |
| ANY 1200 100 | 11.1 | 12.0 | 6 | 980 | Green |
| ANY 1300 100 | 12.1 | 13.0 | 6 | 980 | Green |
| ANY 1400 100 | 13.1 | 14.0 | 7 | 1000 | Red |
| ANY 1500 100 | 14.1 | 15.0 | 7 | 1000 | Black |

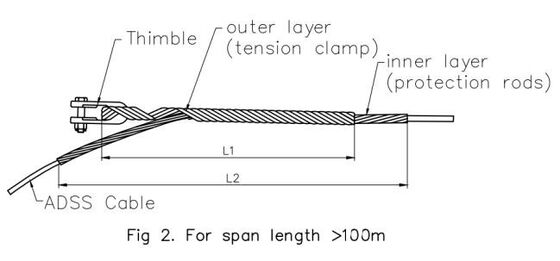

2. Application for ADSS,recommended span length 150-200m (refer Fig.2)(with protection rods)
(The max usage tension load:10KN. The broken strength: 18KN.
|
Type |
Cable out Dia. (mm) |
Specification of outer layer | Specification of inner layer | Code Mark | |||||
|
Min. (mm) |
Max. (mm) |
No. Of rods |
Dia. (rm) |
Length L1 (mm) |
No. Of rods |
Dia. (rm) |
Length L2 (mm) |
||
| ANY 1200 200 | 11.1 | 12.0 | 7 | 2.9 | 900 | 15 | 2.3 | 1200 | Green |
| ANY 1300 200 | 12.1 | 13.0 | 7 | 2.9 | 900 | 15 | 2.3 | 1200 | Green |
| ANY 1400 200 | 13.1 | 14.0 | 7 | 2.9 | 900 | 15 | 2.3 | 1200 | Red |
| ANY 1500 200 | 14.1 | 15.0 | 8 | 2.9 | 900 | 18 | 2.3 | 1200 | Red |
3. Application for ADSS,recommended span length 200-300m (refer Fig.2)(with protection rods)
(The max usage tension load:15KN. The broken strength: 25KN.
|
Type |
Cable out Dia. (mm) |
Specification of outer layer | Specification of inner layer | Code Mark | |||||
|
Min. (mm) |
Max. (mm) |
No. Of rods |
Dia. (rm) |
Length L1 (mm) |
No. Of rods |
Dia. (rm) |
Length L2 (mm) |
||
| ANY 1200 300 | 11.1 | 12.0 | 7 | 2.9 | 980 | 15 | 2.3 | 1280 | Green |
| ANY 1300 300 | 12.1 | 13.0 | 7 | 2.9 | 980 | 15 | 2.3 | 1280 | Green |
| ANY 1400 300 | 13.1 | 14.0 | 7 | 3.6 | 1000 | 15 | 2.3 | 1400 | Red |
| ANY 1500 300 | 14.1 | 15.0 | 8 | 2.9 | 1000 | 19 | 2.3 | 1400 | Black |
4. Application for ADSS,recommended span length 300-400m (refer Fig.2)(with protection rods)
(The max usage tension load:18KN. The broken strength: 30KN.
|
Type |
Cable out Dia. (mm) |
Specification of outer layer | Specification of inner layer | Code Mark | |||||
|
Min. (mm) |
Max. (mm) |
No. Of rods |
Dia. (rm) |
Length L1 (mm) |
No. Of rods |
Dia. (rm) |
Length L2 (mm) |
||
| ANY 1300 400 | 12.1 | 13.0 | 7 | 3.6 | 1200 | 15 | 2.3 | 1600 | Green |
| ANY 1400 400 | 13.1 | 14.0 | 7 | 3.6 | 1200 | 16 | 2.3 | 1600 | Red |
| ANY 1500 400 | 14.1 | 15.0 | 8 | 3.6 | 1200 | 19 | 2.3 | 1600 | Black |
| ANY 1600 400 | 15.1 | 16.0 | 8 | 3.6 | 1200 | 16 | 2.9 | 1600 | Red |
5. Application for ADSS,recommended span length 400-500m (refer Fig.2)(with protection rods)
(The max usage tension load:24KN. The broken strength: 40KN.
|
Type |
Cable out Dia. (mm) |
Specification of outer layer | Specification of inner layer | Code Mark | |||||
|
Min. (mm) |
Max. (mm) |
No. Of rods |
Dia. (rm) |
Length L1 (mm) |
No. Of rods |
Dia. (rm) |
Length L2 (mm) |
||
| ANY 1300 500 | 12.1 | 13.0 | 7 | 3.6 | 1400 | 15 | 2.3 | 1800 | Green |
| ANY 1400 500 | 13.1 | 14.0 | 7 | 3.6 | 1400 | 14 | 2.9 | 1800 | Red |
| ANY 1500 500 | 14.1 | 15.0 | 8 | 3.6 | 1400 | 16 | 2.9 | 1800 | Black |
| ANY 1600 500 | 15.1 | 16.0 | 8 | 3.6 | 1500 | 16 | 2.9 | 1900 | Black |
6. Application for ADSS,recommended span length 500-600m (refer Fig.2)(with protection rods)
(The max usage tension load:30KN. The broken strength: 50KN.
|
Type |
Cable out Dia. (mm) |
Specification of outer layer | Specification of inner layer | Code Mark | |||||
|
Min. (mm) |
Max. (mm) |
No. Of rods |
Dia. (rm) |
Length L1 (mm) |
No. Of rods |
Dia. (rm) |
Length L2 (mm) |
||
| ANY 1200 600 | 11.1 | 12.0 | 7 | 3.6 | 1400 | 13 | 2.9 | 1800 | Yellow |
| ANY 1300 600 | 12.1 | 13.0 | 7 | 3.6 | 1500 | 13 | 2.9 | 1900 | Red |
| ANY 1400 600 | 13.1 | 14.0 | 7 | 3.6 | 1500 | 14 | 2.9 | 1900 | Red |
| ANY 1500 600 | 14.1 | 15.0 | 8 | 3.6 | 1500 | 16 | 2.9 | 1900 | Black |
