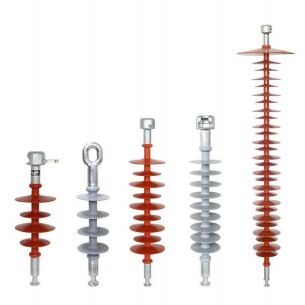

Bar Suspension Composite Insulator

Bar Suspension Composite Insulator
Bar Suspension Composite Insulator

Large Image :  Bar Suspension Composite Insulator Get Best Price

Product Details:
Place of Origin: China
Brand Name: KEY Link
Certification: CE / ISO
Model Number: FXBW/FXBZ
Payment & Shipping Terms:
Minimum Order Quantity: 500sets
Price: USD
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description

Application:

1. Applicable to surge arrester, circuit breaker, capacitor, transformer, cable terminal, GIS and other high voltage electrical equipment.

2.Color: Red, Brown, Gray or customization

3.Applicable standard: IEC, GB , BS , ANSI, AS Or customization

4.Core tube: glass fiber & epoxy resin pull rod;



Rated Voltage
(kV)
Type		 Section Length
(mm)		 Arcing Distance
(mm)		 Creepage Distance
(mm)		 Coupling diamension
(mm)		 Rated Tensile Load
(kN)		 Lightning Impulse Withstand Voltage
(kV)		 Power Frequency Withstand Voltage
(kV)
Dry Wet
10 FXBW—10/70 310 160 350 16 70 75 42 38
35 FXBW—35/70 670 505 810 16 70 230 106 95
66 FXBW—66/70 870 765 1920 16 70 410 230 185
66 FXBW—66/120 870 745 1920 16 120 410 230 185
110 FXBW—110/70 1240 1220 3520 16 70 550 285 230
110 FXBW—110/120 1240 1220 3520 16 120 550 285 230
110 FXBW—110/160 1340 1180 3520 20 160 550 285 230
220 FXBW—220/120 2240 2220 7040 16 120 1000 440 395
220 FXBW—220/160 2240 2200 7040 20 160 1000 440 395
220 FXBW—220*210 2240 2200 7040 16 120 1000 440 395
330 FXBW—330/120 2930 3050 10560 16 120 1425 630 570
330 FXBW—330/160 2930 3050 10560 20 160 1425 630 570
330 FXBW—330/210 2930 3050 10560 20 210 1425 630 570
500 FXBW—500/120 4050 4600 16000 16 120 2050 820 740
500 FXBW—500/160 4050 4600 16000 20 160 2050 820 740
500 FXBW—500/210 4050 4600 16000 20 210 2050 820 740
500 FXBW—500/300 4450 4500 16000 24 300 2050 820 740
500 FXBW—500/420 4450 4500 16000 28 420 2050 820 740
750 FXBW-750/120 7150 6750 23500 16 120 2700 1160 1050
750 FXBW-750/210 7150 6750 23500 20 210 2700 1160 1050
750 FXBW-750/300 7150 6750 23500 24 300 2700 1160 1050
750 FXBW-750/420 7150 6750 23500 28 420 2700 1160 1050
750 FXBW-750/550 7150 6550 23500 32 550 2700 1160 1300
1000 FXBW-1000/210 9000/9750a 8500 ≥32000 20 210 3200 1440 1300
1000 FXBW-1000/300 9000/9750a 8500 ≥32000 24 300 3200 1440 1300
1000 FXBW-1000/420 9000/9750a 8500 ≥32000 28 420 3200 1440 1300
1000 FXBW-1000/550 9000/9750a 8300 ≥32000 32 550 3200 1440 1300
±400 FXBZ-±400/160-G 8000 7500 28030 20 160 2800 830 750
±400 FXBZ-±400/210-G 8000 7500 28030 20 210 2800 830 750
±400 FXBZ-±400/300-G 8000 7500 28030 24 300 2800 830 750
±500 FXBZ-±500/120 6800 6400 22800 16 120 2550 660 600
±500 FXBZ-±500/160 6800 6400 22800 20 160 2550 660 600
±500 FXBZ-±500/210 6800 6400 22800 20 210 2550 660 600
±500 FXBZ-±500/300 6800 6400 22800 24 300 2550 660 600
±500 FXBZ-±500/420 6800 6400 22800 28 420 2550 660 600
±660 FXBZ-±660/160 9200 8700 38400 20 160 2800 830 750
±660 FXBZ-±660/210 9200 8700 38400 20 210 2800 830 750
±660 FXBZ-±660/300 9200 8700 38400 24 300 2800 830 750
±660 FXBZ-±660/420 9200 8700 38400 28 420 2800 830 750
±800 FXBZ-±800/160 10600 10000 36300 20 160 3600 1000 900
±800 FXBZ-±800/210 11500 10900 45430 20 210 3600 1000 900
±800 FXBZ-±800/240 10600 10000 36300 20 240 3600 1000 900
±800 FXBZ-±800/300 10600 10000 36300 24 300 3600 1000 900
±800 FXBZ-±800/420 10600 10000 36300 28 420 3600 1000 900
±800 FXBZ-±800/550 10600 10000 36300 32 550 3600 1000 900
±1100 FXBZ-±1100/160 12300 11600 47355 ring-ring26 160 4500 1280 1150
±1100 FXBZ-±1100/210 12300 11600 47355 ring-ring30 210 4500 1280 1150
±1100 FXBZ-±1100/300 12300 11600 47355 ring-ring34 300 4500 1280 1150
±1100 FXBZ-±1100/420 12300 11600 47355 ring-ring40 420 4500 1280 1150
±1100 FXBZ-±1100/550 12300 11600 47355 ring-ring42 550 4500 1280 1150
±1100 FXBZ-±1100/1000 12300 11600 47355 ring-ring50 1000 4500 1280 1150
Order information:
1. Pollution level ;2. Voltage grade; 3.Mechanical load; 4.Insulation distance ; 5. Creepage distance; 6.Section length; 7.Coupling type
Pls. Different design could be supplied customization.
